CSE5-100701

Mfr.Part # : CSE5-100701

Manufacturer : Triad Magnetics

Description : CURR SENSE XFMR 1:70 10A SMD

Stock : 390

Product Category : Current Sense Transformers

Current Rating (Amps) : 10 A

DC Resistance (DCR) : 4.75Ohm Secondary

Frequency Range : 250kHz Min

Inductance : 980 µH

Mounting Type : Surface Mount

Product Status : Active

Termination Style : Gull Wing

Turns Ratio - Primary:Secondary : 1:70

Type : Invasive

Contact Now

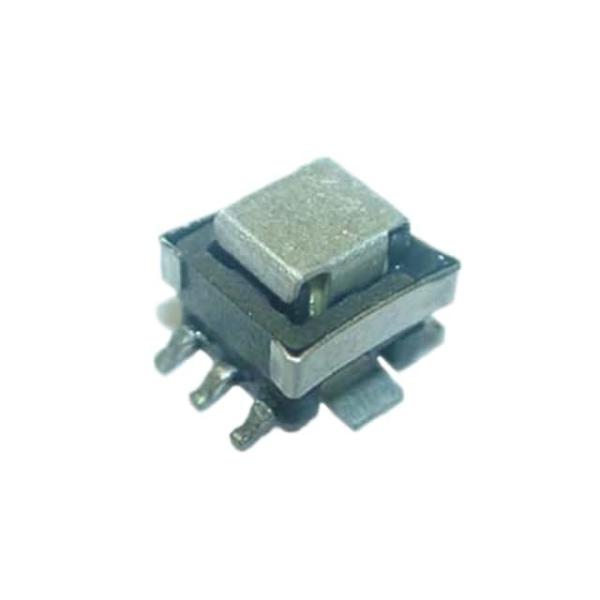

CSE5-100701 Images
