UCC23313DWYR

Mfr.Part # : UCC23313DWYR

Manufacturer : Texas Instruments

Description : IC POWER MANAGEMENT

Stock : 35000

Product Category : Isolators - Gate Drivers

Approval Agency : CQC, UL, VDE

Common Mode Transient Immunity (Min) : 150kV/µs

Current - DC Forward (If) (Max) : 16 mA

Current - Output High, Low : 4.5A, 5.3A

Current - Peak Output : 4.5A, 5.3A

Mounting Type : Surface Mount

Number of Channels : 1

Operating Temperature : -40°C ~ 125°C

Product Status : Active

Propagation Delay tpLH / tpHL (Max) : 105ns, 105ns

Pulse Width Distortion (Max) : 35ns

Rise / Fall Time (Typ) : 28ns, 25ns (Max)

Supplier Device Package : 6-SOIC

Technology : Optical Coupling

Voltage - Forward (Vf) (Typ) : 2.1V

Voltage - Isolation : 3750Vrms

Voltage - Output Supply : 14V ~ 33V

Contact Now

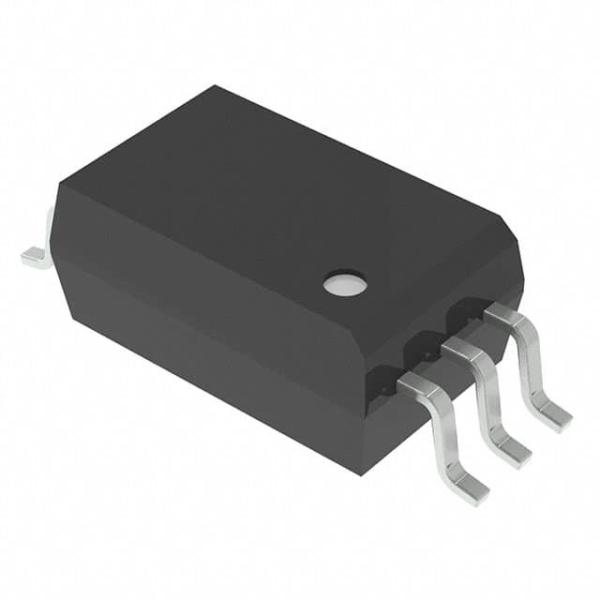

UCC23313DWYR Images
