ACM90V-152-2PL-TL00

Mfr.Part # : ACM90V-152-2PL-TL00

Manufacturer : TDK Corporation

Description : COMMON MODE FILTERS FOR POWER LI

Stock : 1610

Product Category : Common Mode Chokes

Current Rating (Max) : 3.6A

DC Resistance (DCR) (Max) : 16mOhm

Filter Type : Power Line

Impedance @ Frequency : 1.5 kOhms @ 100 MHz

Mounting Type : Surface Mount

Number of Lines : 2

Operating Temperature : -40°C ~ 125°C

Package / Case : Horizontal, 4 PC Pad

Product Status : Active

Ratings : AEC-Q200

Voltage Rating - DC : 80V

Contact Now

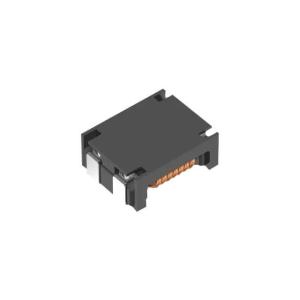

ACM90V-152-2PL-TL00 Images
