NSBC114EDXV6T1G

Mfr.Part # : NSBC114EDXV6T1G

Manufacturer : onsemi

Description : TRANS PREBIAS 2NPN 50V SOT563

Stock : 10

Product Category : Transistors - Bipolar (BJT) - Arrays, Pre-Biased

Current - Collector (Ic) (Max) : 100mA

Current - Collector Cutoff (Max) : 500nA

DC Current Gain (hFE) (Min) @ Ic, Vce : 35 @ 5mA, 10V

Mounting Type : Surface Mount

Package / Case : SOT-563, SOT-666

Power - Max : 500mW

Product Status : Active

Resistor - Base (R1) : 10kOhms

Resistor - Emitter Base (R2) : 10kOhms

Supplier Device Package : SOT-563

Transistor Type : 2 NPN - Pre-Biased (Dual)

Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA

Voltage - Collector Emitter Breakdown (Max) : 50V

Contact Now

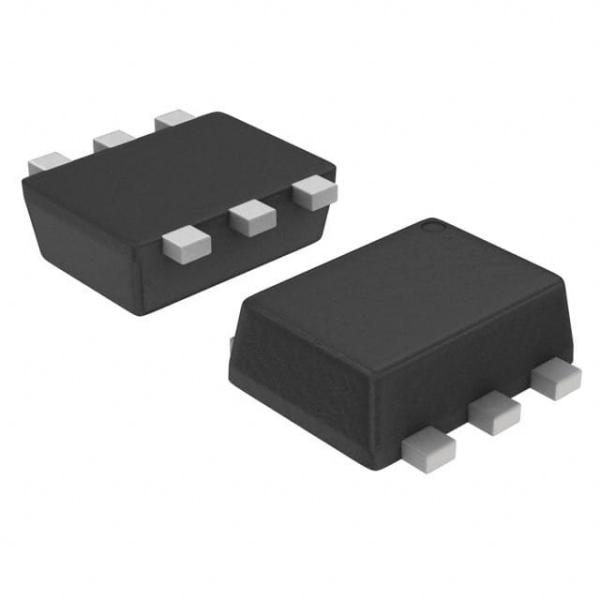

NSBC114EDXV6T1G Images
